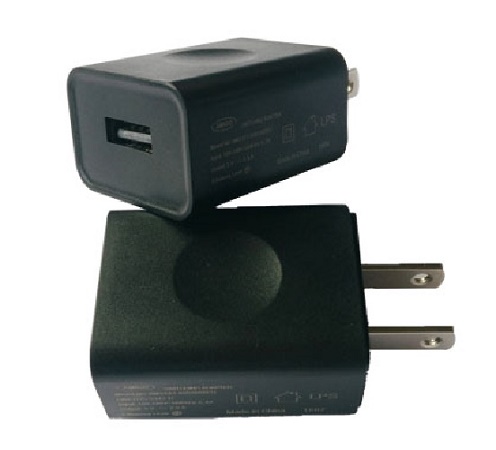

 AMS127 Series

l  特性 / Features:

n 符合能效6等級要求

   DoE Level VI compliance

n USB-A接頭, 小型化外殼

   USB-A Port, small size

proimages/2015目錄R3圖檔/LV6.png

proimages/2017目錄R7圖檔/10W127.jpg

輸入電壓範圍

Input voltage range

AC 90V ~ 264V 47-63Hz

輸出電壓範圍

Output voltage range

5.0 VDC

最大輸出功率/電流

Max. Output Watt/A

10W / 2A Max.

能效等級

Efficiency level

Level VI (CoC Tier 2) Stand by consumption < 0.075W

AC插頭型式

AC Plug configuration

Wall mount vertical plug in (側插式)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

þEN60950-1

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

42.2 x 33 x 23.2 mm (L x W x H)

主要應用產品

Main applications

STB, Networking products

Safety

Output V & I Range

Max. Output Watts

Note

CE

5.0 VDC  0.1 ~ 2.0A

V x A  10W

V&I may be specified

PSE

15V  Various O/P current

>10VA ~ 30VA (*)

* PSE requires I/P VA
