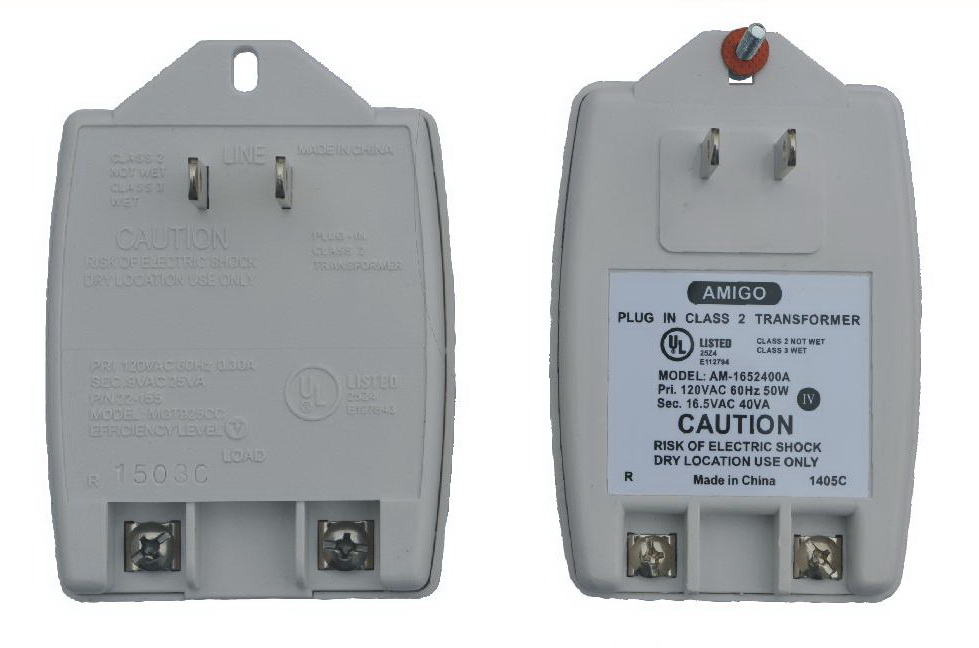

 AM Series

l  特性 / Features:

n   選擇性符合能效4等級要求 / CEC Level IV compliance optional

n   螺絲端子輸出, 有掛勾 / Screw terminals output, with mounting tab

proimages/2015目錄R3圖檔/AM系列.jpg









 proimages/2015目錄R3圖檔/LV4.png



輸入電壓範圍

Input voltage range

AC 120V 60Hz (Linear type)

輸出電壓範圍

Output voltage range

9.0 ~ 24.0 VAC

最大輸出功率/電流

Max. Output Watt

50W Max.

能效等級

Efficiency level

Level IV to VI (Optional) Stand by consumption not required

AC插頭型式

AC Plug configuration

Wall mount with mounting tab (2 pin or 3 pin)

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

£UL60950-1   £GB4943   £CNS13438

£IEC60065   þUL1310

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

Various  (EI 41 to EI 57 type)

主要應用產品

Main applications

Security products

Safety

Output V & I Range

Max. Output Watts

Note

UL/cUL

9,12,16,5,18V,24 VAC

V x A 50W

V&I may be specified
