Class 2 power transformer

proimages/2015目錄R3圖檔/標題CT系列.png

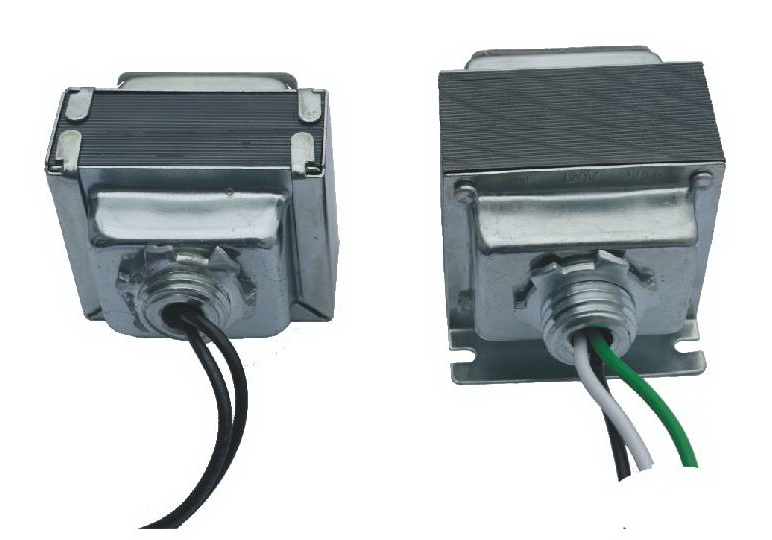

 CT Series

l  特性 / Features:

n   UL 1585 (2685)認證變壓器 / UL 1585 (2685) approved transformer

n   螺絲端子輸出, 提供螺紋管穿線方式 / Screw output, conduit threads offers

proimages/2015目錄R3圖檔/CT系列.jpg



















輸入電壓範圍

Input voltage range

AC 120V 60Hz (Linear type)

輸出電壓範圍

Output voltage range

8.0 ~ 24.0 VAC

最大輸出功率/電流

Max. Output Watt

40W Max.

能效等級

Efficiency level

N/A

AC插頭型式

AC Plug configuration

Screw conduit threads offers

認證標準

(詳細認證安規見下表)

Applicable standard

(See detailed approvals as below)

£UL60950-1   £GB4943   £CNS13438

þUL1585 / 2685

外殼尺寸(不含AC Plug)

Case size (exclude AC Plug)

Various  (EI 57 type)

主要應用產品

Main applications

Door ring system, Security products

Safety

Output V & I Range

Max. Output Watts

Note

UL/cUL

8,10,12,16,16.5,24 VAC

V x A ≦ 40W

V&I may be specified
