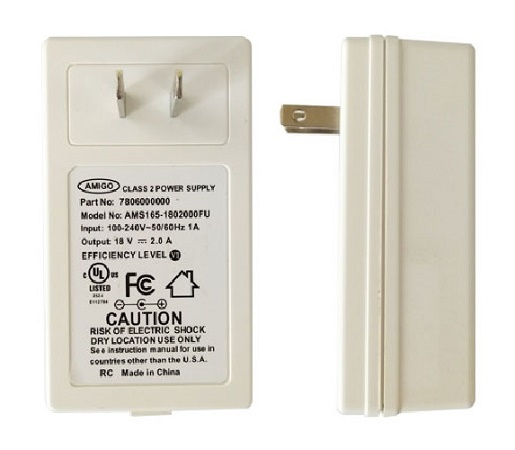

36W series (Level VI)
AMS165 Series
l 特性 / Features:
n 符合能效6等級要求
DoE Level VI compliance
n 出線式結構頭
Cord connection available
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
18.0 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
36W / 2.0A Max. |
|
|
能效等級 |
Efficiency level |
Level VI (CoC Tier 2) Stand by consumption < 0.075W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount horizontal plug in (正插式) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL1310 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
96.5 x 55.0 x 34.5 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Security products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL / FCC |
18.0 VDC 0.01 ~ 2.0A |
V x A ≦ 36W |
V&I may be specified |
