24W series (Level VI)
AMS38 Series
l 特性 / Features:
n 符合能效6等級要求
CEC Level VI compliance

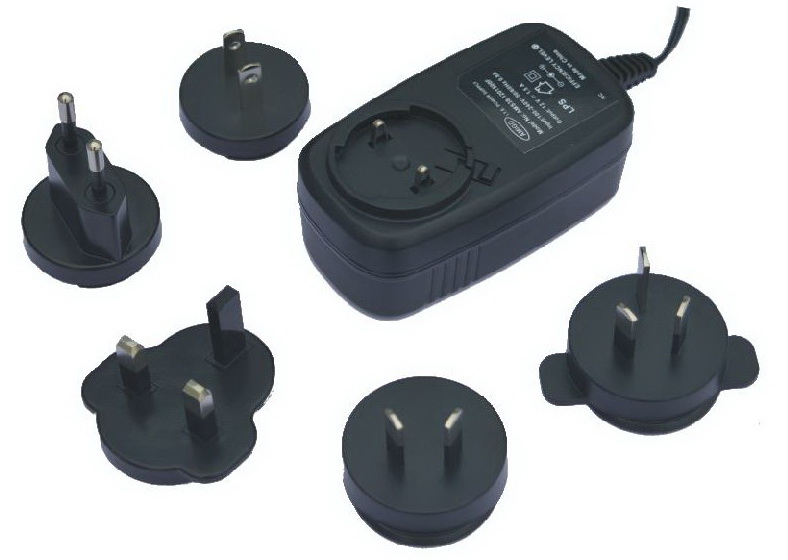

n 可抽換式AC插頭設 計
Interchangeable AC plug design
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
5~24 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
30W / 4 A Max. |
|
|
能效等級 |
Efficiency level |
Level VI (CoC Tier 2) Stand by consumption < 0.075W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount horizontal plug in (正插式) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL/IEC/EN/NZS 60950-1 þGB4943 £CNS13438 þIEC60065 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
90.3 x 50 x 38.15 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
IP Camera, Router, STB, Networking products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL / cUL / CB / CE / SAA / CCC |
5 ~ 24 VDC 0.1~ 4.0A |
V x A ≦ 30W |
V&I may be specified |
|
PSE |
≦ 15V Various O/P current |
>20VA ~≦60VA (*) |
* PSE requires I/P VA |
