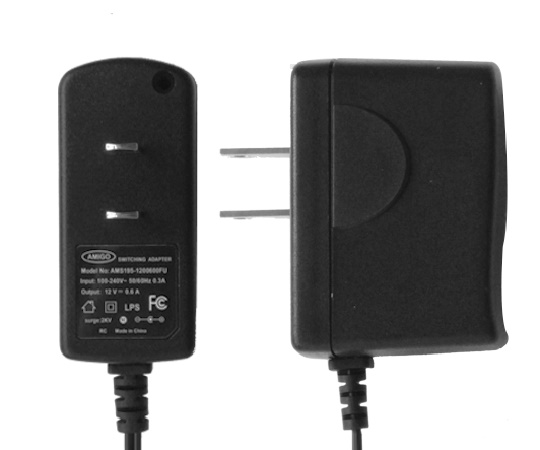

12W USB series (Level VI)
AMS195 Series
l 特性 / Features:
n 符合能效6等級要求
DoE Level VI compliance
n USB-A接頭或出線式結構
Both USB-A and cord connection available
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
5.0 ~ 24.0 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
12.0W / 2.0A Max. |
|
|
能效等級 |
Efficiency level |
Level VI (CoC Tier 2) Stand by consumption < 0.075W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount front side plug in (側插式) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þIEC/EN 60950-1 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
61.0 x 42.0 x 28.5 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
VoIP, Router, STB, Networking products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
CB / GS / CE / FCC |
5.0 ~ 24.0 VDC 0.01 ~ 2.0A |
V x A ≦ 12W |
V&I may be specified |
|
PSE |
≦15V Various O/P current |
>10VA ~ ≦30VA (*) |
* PSE requires I/P VA |
