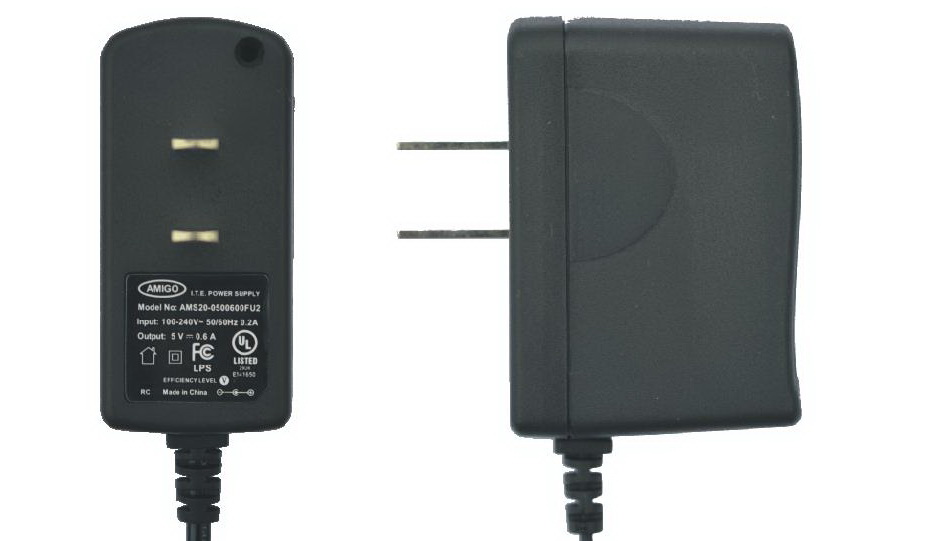

6W series (Level V)
AMS20 Series
l 特性 / Features:
n 符合能效5等級要求
CEC Level V compliance
n 可No-Y電容對應
Y Cap. free option
| 輸入電壓範圍 | Input voltage range | AC 90V ~ 264V 47-63Hz | |
| 輸出電壓範圍 | Output voltage range | 5.0 ~ 12.5 VDC | |
| 最大輸出功率/電流 | Max. Output Watt/A | 6W / 1.2A Max. | |
| 能效等級 | Efficiency level | Level V Stand by consumption < 0.3W | |
| AC插頭型式 | AC Plug configuration | Wall mount vertical plug in (側插式) | |
| 認證標準(詳細認證安規見下表) | Applicable standard(See detailed approvals as below) | þUL/IEC/EN/NZS 60950-1 þGB4943 þCNS13438£IEC60065 | |
| 外殼尺寸(不含AC Plug) | Case size (exclude AC Plug) | 61 x42 x 28.5 mm (L x W x H) | |
| 主要應用產品 | Main applications | VoIP, Router, Mobile device, Networking products | |
| Safety | Output V & I Range | Max. Output Watts | Note |
| UL / cUL / BSMI /GS / CB / CE /CCC /SAA | 5.0 ~12.5 VDC 0.01 ~ 1.2A | V x A ≦ 6W | V&I may be specified |
| PSE | ≦ 15V Various O/P current | >10VA ~≦20VA (*) | * PSE requires I/P VA |
| KC | 5.0 ~7.5 VDC 0.1 ~ 1.2A | V x A ≦ 6W | V&I may be specified |
