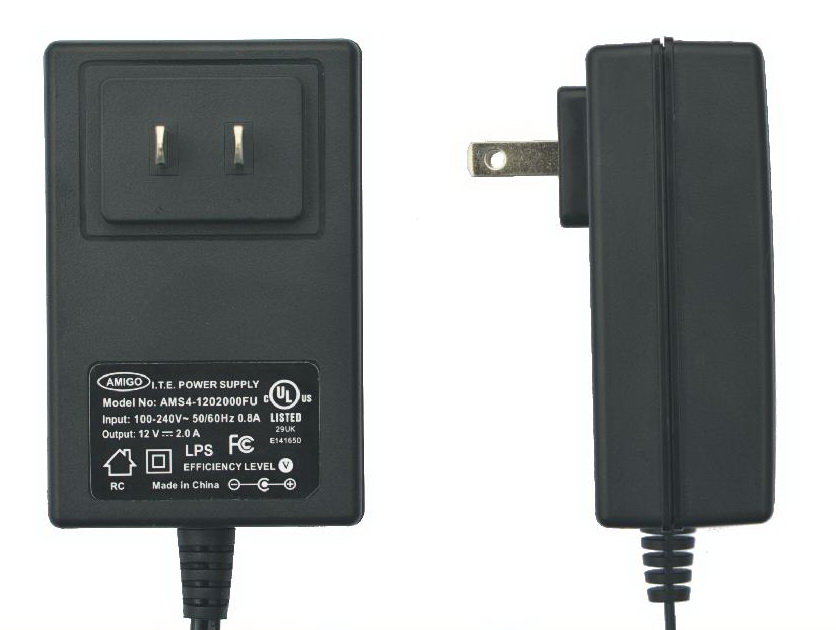

24W series (Level V)
AMS4 Series
l 特性 / Features:
n 符合能效5等級要求
CEC Level V compliance
n 正插外殼設計
Horizontal AC plug in case
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
2.5~24 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
24W / 5A Max. |
|
|
能效等級 |
Efficiency level |
Level V Stand by consumption < 0.3W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount Horizontal plug in (正插式) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL/IEC/EN/NZS 60950-1 þGB4943 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
85.7 x 55.8 x 32 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Cable modem, Router, STB, Networking products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL / cUL / GS / CB / CE / SAA |
2.5 ~24 VDC 0.1 ~ 5A |
V x A ≦ 24W |
V&I may be specified |
|
CCC |
3.3 ~24 VDC 0.8 ~ 5A |
V x A ≦ 24W |
V&I may be specified |
|
PSE |
≦ 15V Various O/P current |
>30VA ~≦60VA (*) |
* PSE requires I/P VA |
