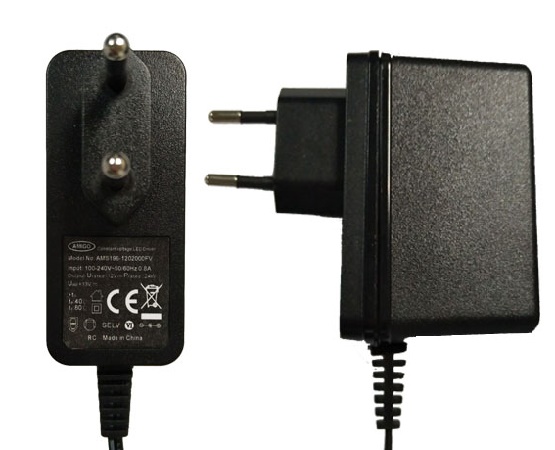

24W series (Level VI)
AMS196 Series
l 特性 / Features:
n 符合能效6等級要求
DOE Level VI compliance
n 出線式結構
Cord connection available
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
5.0 ~ 30.0 VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
24.0W / 3.0A Max. |
|
|
能效等級 |
Efficiency level |
Level VI (CoC Tier 2) Stand by consumption < 0.075W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount vertical plug in (側插式) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þIEC/EN 61347 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
74.5 x 34.0 x 47.0 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
LED lamp products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
CB / CE |
5.0 ~ 30.0 VDC 0.01~ 3.0A |
V x A ≦ 24W |
V&I may be specified |
|
PSE |
≦15V Various O/P current |
>20VA ~ ≦80VA (*) |
* PSE requires I/P VA |
