22.5W Screw series (Level V)
AMS62 Series
l 特性 / Features:
n 符合能效5等級要求 / CEC Level V compliance

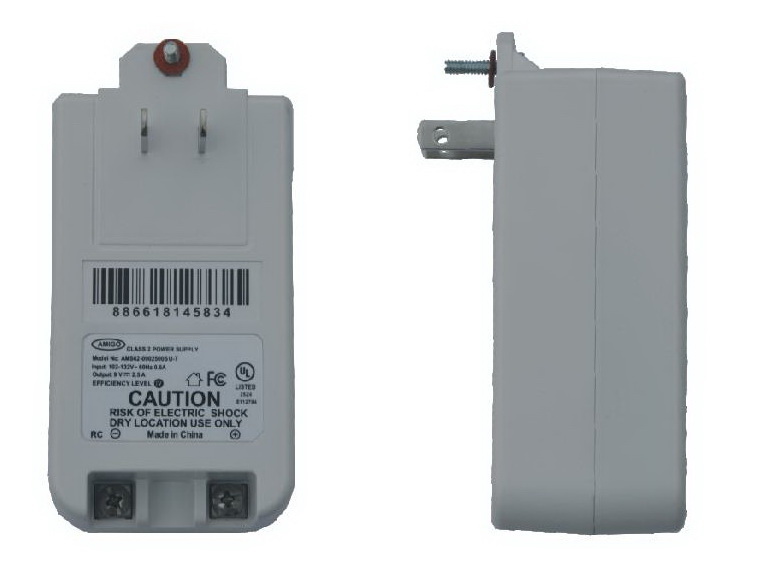

n 螺絲端子或Cord輸出, 有掛勾 / Screw terminals or cord output, with mounting tab
|
輸入電壓範圍 |
Input voltage range |
AC 90V ~ 264V 47-63Hz or AC 90V ~ 132V 47-63Hz |
|
|
輸出電壓範圍 |
Output voltage range |
9.0 VDC / 15.5VDC |
|
|
最大輸出功率/電流 |
Max. Output Watt/A |
22.5W / 2.5A Max. |
|
|
能效等級 |
Efficiency level |
Level V Stand by consumption < 0.3W |
|
|
AC插頭型式 |
AC Plug configuration |
Wall mount with mounting tab (2 pin or 3 pin) |
|
|
認證標準 (詳細認證安規見下表) |
Applicable standard (See detailed approvals as below) |
þUL60950-1 £GB4943 £CNS13438 £IEC60065 þUL1310 |
|
|
外殼尺寸(不含AC Plug) |
Case size (exclude AC Plug) |
97 x 55 x 40 mm (L x W x H) |
|
|
主要應用產品 |
Main applications |
Security products |
|
|
Safety |
Output V & I Range |
Max. Output Watts |
Note |
|
UL/cUL |
9.0 VDC 2.5A & 15.5 VDC 1.0A |
V x A ≦ 22.5W |
V&I may be specified |
